TRACO POWER’s 4W Regulated DC-DC Converters Bridge the 3-6 Watt Gap

November 05, 2020 by Hailey Stewart

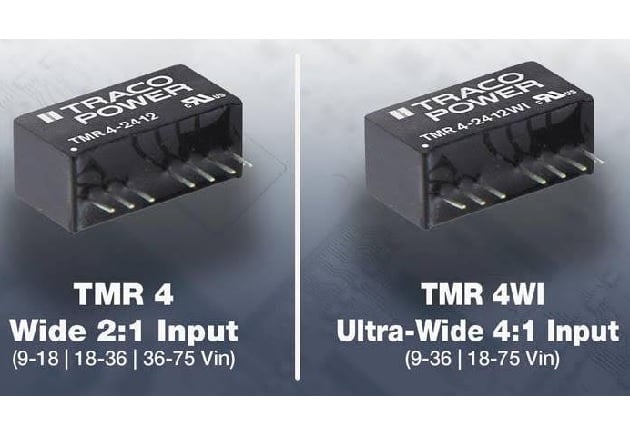

The TMR 4 (2:1 input range) and TMR 4WI (4:1 input range) are two families of regulated 4 Watt DC-DC converters with either single or dual output voltages ranging from 5 to 24 VDC.

TRACO POWER’s new 4 watt regulated DC-DC converters are available with either 2:1 (TMR 4) or 4:1 (TMR 4WI) input ranges, bridging the 3 to 6-watt gap of industry-standard SIP-8 converter solutions.

TRACO POWER's 4W Regulated DC-DC Converters Bridge the 3-6 Watt Gap



The TMR 4 (2:1 input range) and TMR 4WI (4:1 input range) are two families of regulated 4 Watt DC-DC converters with either single or dual output voltages ranging from 5 to 24 VDC. Each comes in a compact SIP-8 package featuring I/O isolation of 1600 VDC and protection against short-circuit and overload. Their advanced design provides efficiencies up to 87%, an operating temperature range of -40°C to +70°C without derating and an integrated remote On/Off function. Safety approved to the latest IEC/EN/UL 62368-1 industrial standard, these DC-DC converters deliver a high quality, cost efficient solution and provide a cost-efficient alternative to 6 Watt converters in 3-4 watt applications.

Products are in stock and available through distributors around the globe with manufacturing lead times of 12-14 weeks. Please see this link tmr4 for specifications.
