Geehy Intros 200 V Motor Gate Driver for Compact 3-Phase Drive Systems

Geehy has introduced a new 200 V medium-voltage gate driver within its motor control portfolio, marking a notable addition for designers of compact electric motor systems. The primary advancement of the new GHD3450—a three-phase dual N-channel motor gate driver—is its high level of integration, which helps simplify the architectural footprint of modern motor drive designs.

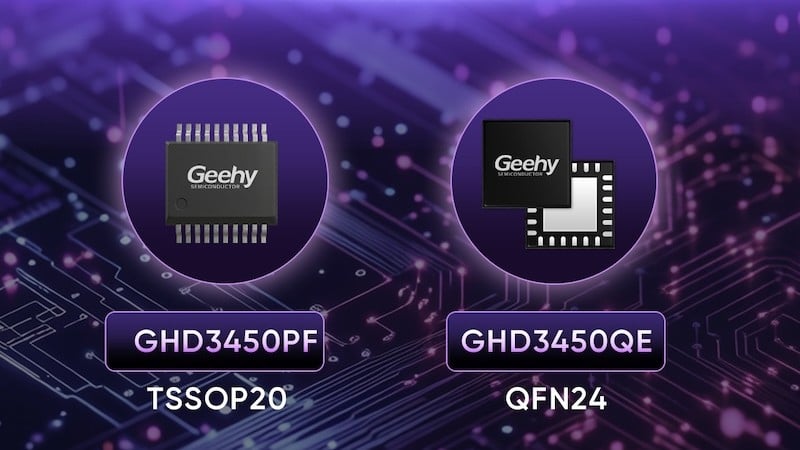

The GHD3450 is a three-phase dual N-channel motor gate driver available in two package options.

Designed to accommodate a wide array of DC brushless and brushed motor configurations, the new gate driver supports a supply voltage operating range of 5.5 V to 20 V. It is fully compatible with both 3.3 V and 5 V logic inputs and features a +200 V floating offset voltage, providing engineers the flexibility needed to tackle varied industrial, consumer, and mobility drive requirements.

High-Speed Switching and Current Delivery

Operating efficiently at higher switching frequencies requires robust current-handling capabilities to minimize power loss. The GHD3450 is optimized for high-speed switching, delivering a peak source current of 2.0 A at 15 V with a rapid 20 ns fall time under a 3.3 nF load. Additionally, it provides a peak sink current of 2.7 A at 15 V, achieving a 35 ns rise time under the same 3.3 nF load condition.

The GHD3450 is tailored for high-speed switching.

This rapid current delivery translates directly into reduced switching losses within the driven power devices. By ensuring quick and clean phase transitions, the driver boosts the overall efficiency of the inverter assembly, giving engineers the ability to output reliable continuous power without increasing the physical size of the system or exacerbating thermal loads.

Dynamic Response and System Protection

In high-current motor control topologies, reliable protection is just as critical as switching performance. Geehy has equipped the GHD3450 with multiple integrated safeguards, including VCC and VBS undervoltage lockout (UVLO) to prevent erratic behavior during marginal power drops, alongside hardware-level shoot-through prevention. The device incorporates a strictly enforced built-in minimum dead time of 220 ns, which protects power devices from destructive cross-conduction during switching intervals.

For reliability and safety, the GHD3450 features multiple protection mechanisms.

The driver also prioritizes high-precision dynamic response. Carefully matched propagation delays between the high-side and low-side channels further safeguard against bridge shoot-through, directly enhancing system efficiency and long-term reliability. Furthermore, the driver's in-phase input and output preserve PWM signal integrity for highly accurate motor control. To handle the electrically noisy environments typical of motor drives, the device also boasts strong dv/dt noise immunity.

Integration Options and Footprint Optimization

A critical engineering benefit of the GHD3450 is its capacity to streamline printed circuit board (PCB) layouts and reduce bill-of-materials (BOM) costs. By integrating a built-in bootstrap diode and input/output pull-down resistors directly into the IC structure, original equipment manufacturers can reduce their dependency on external discrete components.

Rated for a rugged operating temperature range of -40°C to 105°C, the driver provides dependable performance in demanding operational climates. To suit a variety of mechanical footprints and thermal demands, Geehy offers the GHD3450 in two compact package options: TSSOP20 and QFN24.

Moving forward, this hardware is ideally suited for space-constrained and battery-operated multi-kilowatt applications. This includes power tools, garden equipment, drone electronic speed controllers (ESCs), cleaning robots, and personal mobility devices looking to maximize power density while shedding excess structural weight. Samples of the GHD3450 are currently available.
