Vox’s VCCS300 Series Delivers 300W of Continuous Output Power

November 18, 2020 by Hailey Stewart

The VOX VCCS300 series delivers a silent 300 Watts of continuous output power in a rugged and miniature 2” x 4” x 1.61” package.

The VCCS300 series delivers a silent 300 Watts of continuous output power in a rugged and miniature 2” x 4” x 1.61” package, which can be cooled using conduction, convection or forced air cooling techniques. It is the ultimate power solution for applications where rugged reliability, high efficiency, silent operation and BF rating are important factors.

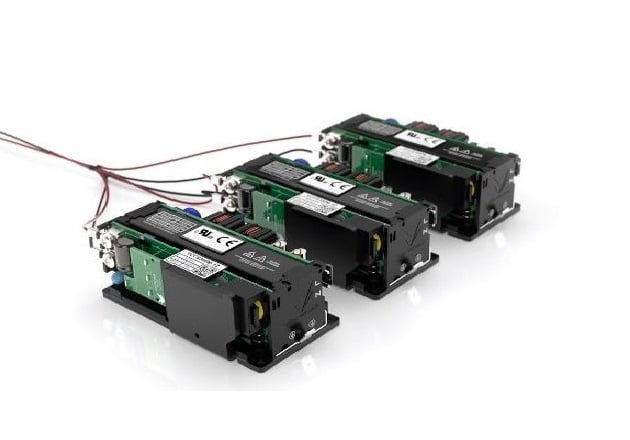

Image courtesy of VOX
Image courtesy of Vox


This product series offers power densities exceeding 23W/in3 with efficiencies up to 95% in a scalable power architecture. Power solutions of 300 Watts, 600 Watts, 900 Watts and beyond can be achieved by using the onboard droop current share function, which allows end users to scale up or down depending on their power requirements.



Image courtesy of VOX
Image courtesy of Vox



The VCCS300 is certified to the latest international Medical (BF rated) and ITE Safety Standards and offers output voltages ranging from 12V to 58V. The product is suitable for class I or II equipment up to 5000m and carries various Immunity and MIL STD approvals, making it perfect for applications in rugged and high vibration environments.

Samples will be available early 2021 for registered business opportunities and please contact your local distributor or Vox Power to discuss your VCCS300 application. To download the latest datasheets and product documentation visit our product pages for Industrial (VCCS300S) and Medical (VCCS300M).

View the unique features of the  VCCS300 Series.



About Vox Power

Vox Power is an Irish Owned Company that Supply and Manufacture Unique AC/DC Power Solutions for Industrial, Medical and Technology Markets.
