Dual, Single-Phase Bridge, and Single-Switch SOT-227 Power Modules
Vishay Intertechnology, Inc. today expanded its portfolio of power modules in the SOT-227 package with seven new devices featuring ThunderFET® power MOSFETs and standard, FRED Pt®, and Trench MOS Barrier Schottky (TMBS®) diodes. The Vishay Semiconductors modules are available in dual, single-phase bridge, and single-switch topologies with a variety of current and voltage ratings.
The VS-FC420SA15 and VS-FC270SA20 single-switch modules featuring ThunderFET power MOSFETs are Vishay's first with voltages of 150V and 200V, respectively. Designed for high performance dc-dc converters, battery chargers, ac motor drives, and UPS, the devices offer current to 400A, low on-resistance down to 1.93mΩ at 10V, and gate charge of 250nC.
Vishay's first 1200 V insulated standard recovery rectifier modules in the SOT-227 package, the VS-RA160FA120 and VS-RA220FA120 are optimized for OR-ing applications in electric vehicle chargers and single- and three-phase bridges. The dual devices feature high forward current to 220A, low 0.26 °C/W junction to case thermal resistance, and low forward voltage drop down to 1.22V.
Featuring FRED Pt diodes, Vishay's VS-UFH280FA30 insulated Hyperfast rectifier module is the company's first to feature 300V in a dual topology, while the VS-UFH60BA65 is its first Ultrafast single-phase bridge device.
Intended for low voltage, high frequency inverters in welding machines and UPS, and output rectification for charging stations and switch mode power supplies, the devices offer soft recovery characteristics, fast reverse recovery times down to 58ns, and current to 280A.
For high frequency switch mode power supplies, dc-dc converters, and plasma cutters, Vishay's new VS-QA300FA17 insulated TMBS rectifier module is the company's first with a 170V rating. Offered in a dual topology, the device features current of 300A, low forward voltage of 0.98V at 200A, and low junction to case thermal resistance of 0.26 °C/W per leg (0.13 °C/W per module).

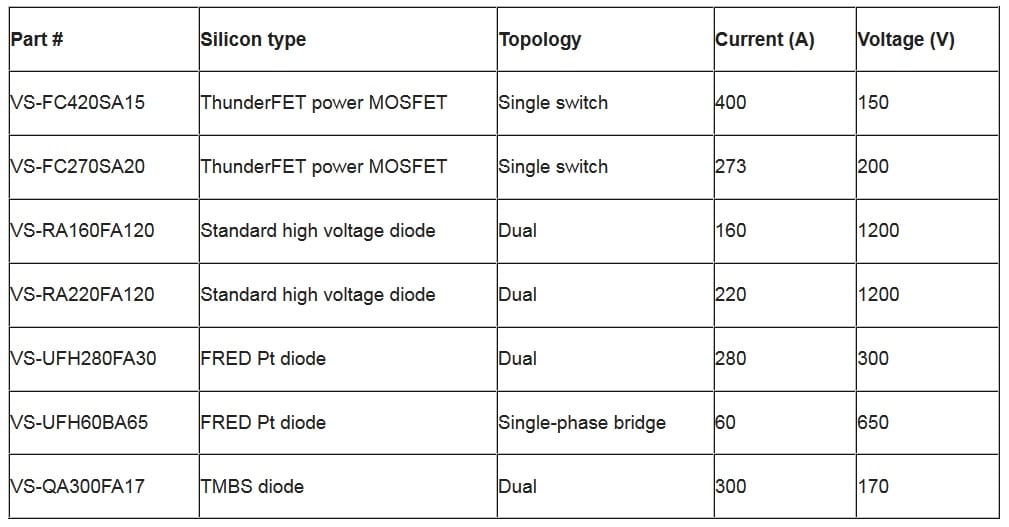

Device Specification Table:
(click on table to enlarge)
While competing devices typically offer operating temperatures to +150°C, the power MOSFET, Hyperfast, and TMBS modules released today provide high temperature performance to +175°C. The devices are RoHS-compliant and UL-approved.
Samples and production quantities of the new power modules are available now, with lead times of 12 to 14 weeks for large orders. Pricing for U.S. delivery only starts at $13.57 per piece for modules with ThunderFET MOSFETs; $11.99 for standard diodes; $11.43 for FRED Pt diodes; and $12.11 for TMBS diodes.
