40 and 60 Watt DC/DC Converters with Ultra-Wide 12:1 Input RangeJuly 17, 2020 by Hailey Stewart
TRACO Power’s new 40 Watt TEP 40UIR and 60 Watt TEP 60UIR families of high-performance DC/DC converters offer an ultra-wide 12:1 input range in the industry standard quarter brick package.
TRACO Power’s new 40 Watt TEP 40UIR and 60 Watt TEP 60UIR families of high-performance DC/DC converters offer an ultra-wide 12:1 input range in the industry-standard quarter brick package. These robust DC/DC converters were designed for railway, transportation and industrial markets providing a diverse set of features for challenging applications.

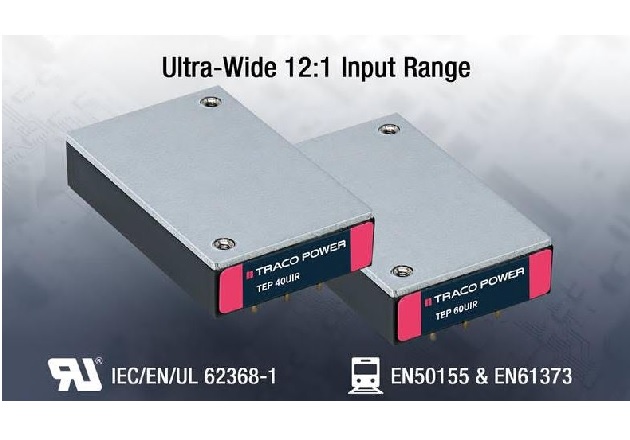

Image courtesy of TRACO Power
The TEP 40UIR (40 watt) and TEP 60UIR (60 watt) families each consist 10 models offering a choice of two ultra-wide input ranges of 9~75 or 14~160Vin and single outputs of 5 / 12 / 15 / 24 / 48Vout, trimmable -20/+10%. The ultra-wide 12:1 input range allow these converters to be an all-in-one solution for applications requiring operation over multiple input ranges. An internal circuit extends hold-up time, eliminating the need for expensive high voltage capacitors at the input. A single 25V capacitor covers the entire input range, effectively reducing cost, size and inrush current. These converters are offered in the standard quarter brick (2.3 x 1.45 x 0.5") metal package. Standard features include: a high efficiency up to 91%; operating temperature range of -40°C up to +85°C; I/O-isolation voltage of 3,000 VAC; adjustable under voltage lockout function; remote on/off; and adjustable outputs. All models are approved to IEC/EN/UL 62368-1 and certified for railway applications according to EN 50155, EN 61373, EN 45545-2 and supported by a 3 year product warranty.
Products are in stock and available through distributors around the globe with manufacturing lead times of 12-14 weeks. Please see this link or specifications.
About TRACO Power
TRACO Electronic AG is a Swiss company with headquarters based in Baar, Switzerland. As a leading power supply specialist with more than 35 years experience we are dedicated to the design and manufacturing of high quality DC/DC and AC/DC power conversion products. TRACO markets its products worldwide under the registered trademark TRACO Power. Our mission is to provide our customers with optimal power supply solutions in terms of performance, quality and cost for their individual application.
