Using a Laser to Wirelessly Charge a Smartphone Safely Across a RoomMarch 15, 2018 by Paul Shepard
Although mobile devices such as tablets and smartphones let us communicate, work and access information wirelessly, their batteries must still be charged by plugging them in to an outlet. But engineers at the University of Washington have for the first time developed a method to safely charge a smartphone wirelessly using a laser.
As the team reports in a paper published online in December in the Proceedings of the Association for Computing Machinery on Interactive, Mobile, Wearable & Ubiquitous Technologies, a narrow, invisible beam from a laser emitter can deliver charge to a smartphone sitting across a room — and can potentially charge a smartphone as quickly as a standard USB cable.
To accomplish this, the team mounted a thin power cell to the back of a smartphone, which charges the smartphone using power from the laser. In addition, the team custom-designed safety features — including a metal, flat-plate heatsink on the smartphone to dissipate excess heat from the laser, as well as a reflector-based mechanism to shut off the laser if a person tries to move in the charging beam's path.
"Safety was our focus in designing this system," said co-author Shyam Gollakota, an associate professor in the UW's Paul G. Allen School of Computer Science & Engineering.
"We have designed, constructed and tested this laser-based charging system with a rapid-response safety mechanism, which ensures that the laser emitter will terminate the charging beam before a person comes into the path of the laser," Gollakota continued.
Gollakota and co-author Arka Majumdar, a UW assistant professor of physics and electrical engineering, led the team that designed this wireless charging system and its safety features.
The University of Washington engineers behind the wireless charging system for mobile devices.
Standing (left-to-right): Vikram Iyer, Shyam Gollakota, Elyas Bayati. Seated (left-to-right): Rajalakshmi Nandakumar, Arka Majumdar. credit: Mark Stone/University of Washington
"In addition to the safety mechanism that quickly terminates the charging beam, our platform includes a heatsink to dissipate excess heat generated by the charging beam," said Majumdar, who is also a researcher in the UW Molecular Engineering & Sciences Institute. "These features give our wireless charging system the robust safety standards needed to apply it to a variety of commercial and home settings."
The charging beam is generated by a laser emitter that the team configured to produce a focused beam in the near-infrared spectrum. The safety system that shuts off the charging beam centers on low-power, harmless laser "guard beams," which are emitted by another laser source co-located with the charging laser-beam and physically "surround" the charging beam.
Custom 3-D printed "retroreflectors" placed around the power cell on the smartphone reflect the guard beams back to photodiodes on the laser emitter. The guard beams deliver no charge to the phone themselves, but their reflection from the smartphone back to the emitter allows them to serve as a "sensor" for when a person will move in the path of the guard beam.
The researchers designed the laser emitter to terminate the charging beam when any object — such as part of a person's body — comes into contact with one of the guard beams. The blocking of the guard beams can be sensed quickly enough to detect the fastest motions of the human body, based on decades of physiological studies.
Illuminated in red is one of the 3-D printed retroreflectors, which reflects the low-power guard beams to diodes on the laser emitter. Interruption of the guard beams triggers a safety system which blocks the charging beam. Credit: Mark Stone/University of Washington
"The guard beams are able to act faster than our quickest motions because those beams are reflected back to the emitter at the speed of light," said Gollakota. "As a result, when the guard beam is interrupted by the movement of a person, the emitter detects this within a fraction of a second and deploys a shutter to block the charging beam before the person can come in contact with it."
The next generation of nano-scale optical devices are expected to operate with Gigahertz frequency, which could reduce the shutter's response time to nanoseconds, added Majumdar.
The beam charges the smartphone via a power cell mounted on the back of the phone. A narrow beam can deliver a steady 2W of power to 15 square-inch area from a distance of up to 4.3 meters, or about 14 feet. But the emitter can be modified to expand the charging beam's radius to an area of up to 100 square centimeters from a distance of 12 meters, or nearly 40 feet.
This extension means that the emitter could be aimed at a wider charging surface, such as a counter or tabletop, and charge a smartphone placed anywhere on that surface.
The researchers programmed the smartphone to signal its location by emitting high-frequency acoustic "chirps." These are inaudible to our ears, but sensitive enough for small microphones on the laser emitter to pick up.
The UW team's prototype laser emitter. The high-powered guard beam is emitted from the central port. Four low-powered guard beams are emitted from ports surrounding the guard beam. Next to each guard beam port are clear photodiodes, which detect the guard beams when they're reflected back to the emitter by retroreflectors on the phone. Credit Mark Stone/University of Washington
"This acoustic localization system ensures that the emitter can detect when a user has set the smartphone on the charging surface, which can be an ordinary location like a table across the room," said co-lead author Vikram Iyer, a UW doctoral student in electrical engineering.
When the emitter detects the smartphone on the desired charging surface, it switches on the laser to begin charging the battery.
"The beam delivers charge as quickly as plugging in your smartphone to a USB port," said co-lead author Elyas Bayati, a UW doctoral student in electrical engineering. "But instead of plugging your phone in, you simply place it on a table."

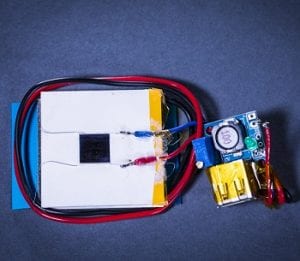

The UW team's prototype heatsink assembly, which can be attached to the back of a smartphone, consists of a photovoltaic cell (silver square, top) attached to a thermoelectric generator (in white). The generator is mounted on top of an aluminum heatsink. The entire assembly is only 8mm thick and 40mm wide. Credit Mark Stone/University of Washington
To ensure that the charging beam does not overheat the smartphone, the team also placed thin aluminum strips on the back of the smartphone around the power cell. These strips act as a heatsink, dissipating excess heat from the charging beam and allowing the laser to charge the smartphone for hours. They even harvested a small amount of this heat to help charge the smartphone — by mounting a nearly-flat thermoelectric generator above the heatsink strips.
The researchers believe that their robust safety and heat-dissipation features could enable wireless, laser-based charging of other devices, such as cameras, tablets and even desktop computers. If so, the pre-bedtime task of plugging in your smartphone, tablet or laptop may someday be replaced with a simpler ritual: placing it on a table.
Co-author is Rajalakshmi Nandakumar, a UW doctoral student in the Allen School. The research was funded by the National Science Foundation, the Alfred P. Sloan Foundation and Google Faculty Research Awards.
