Mean Well Unwraps 2400 W Compact Power Supply with 200% Peak Capability

Mean Well has released the NSP-2400 Series, a new 2400 W AC-DC high-reliability enclosed power supply, expanding its existing NSP family. The primary advancement of this unit is its highly compact size coupled with robust thermal and power delivery capabilities, marking a significant step forward for equipment miniaturization in industrial automation, renewable energy, and medical applications.

Traditional enclosed power supplies of this wattage often consume significant chassis space. By implementing an optimized design, Mean Well has achieved a 55 percent volume reduction compared to its previous-generation RSP-2400 series. Despite this smaller physical footprint, the new NSP-2400 offers a peak power capability of 200 percent of its rated output.

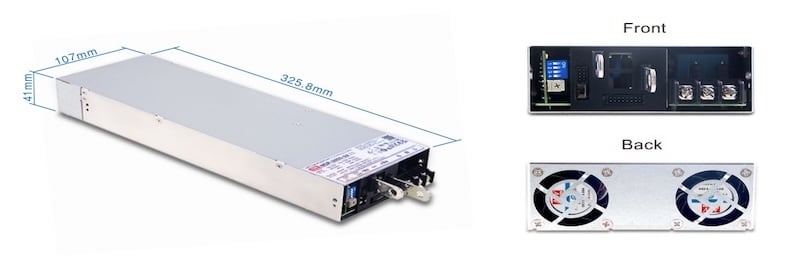

The NSP-2400 Series is a 2400 W AC-DC high-reliability enclosed power supply.

This massive transient headroom gives engineers the flexibility to reliably drive motors, pumps, and heavy capacitive loads without oversizing the base power supply or increasing the overall physical size of the system.

Programmable Output and Digital Integration

Beyond raw power density, the series brings granular control to modern power architectures. The NSP-2400 features built-in PV and PC functions, allowing the output voltage to be flexibly adjusted from 0 to 120 percent and the output current to be configured from 0 to 100 percent. Available across seven nominal output voltage models—12 V, 15 V, 24 V, 27 V, 36 V, 48 V, and 60 V—the platform caters directly to specific application requirements without hardware alterations.

To satisfy the demands of smart manufacturing and automated infrastructure, the power supply is equipped with the CANBus communication protocol as standard, with Modbus support available as an optional add-on. This digital connectivity ensures systems can easily perform real-time monitoring and dynamic load management. More information can be found in the NSP-2400 data sheet.

Multi-Industry Safety and Environmental Robustness

A critical engineering benefit of the NSP-2400 is its vast array of global safety certifications, giving it true drop-in compatibility across highly regulated markets. The series maintains compliance for Information Technology Equipment (ITE 62368-1), Medical (60601-1), Household (60335-1), Industrial (61558-1/61010-1), and Energy Converters (62477-1). Notably, it complies with SEMI F47 requirements for voltage sag immunity, which is crucial for maximizing uptime in sensitive semiconductor fabrication facilities.

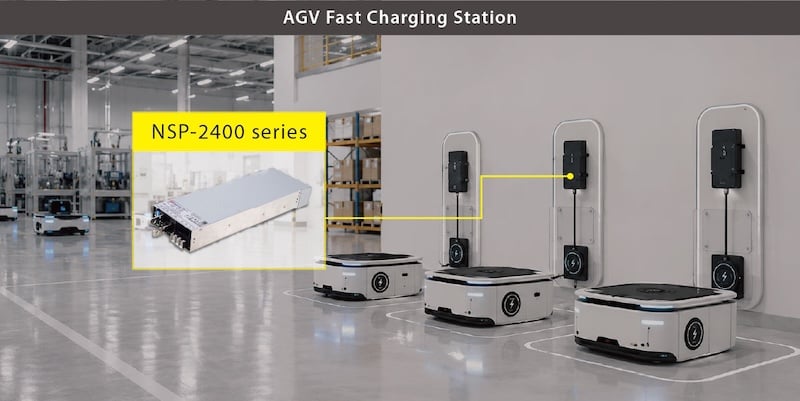

AGV fast charging station application example for the NSP-2400

For medical systems, the power supply offers ultra-low leakage current (under 500 µA) and complies with stringent 2 × MOPP isolation requirements, making it entirely suitable for BF-type (Body Floating) patient-contact equipment.

Operating reliably in harsh conditions is another hallmark of the new series. It features an ultra-wide 85 to 305 Vac input range—ensuring 277 Vac operability for heavy industrial sites—and a broad operating temperature window spanning -40°C up to +85°C. Designed to Overvoltage Category III (OVC III) specifications, the device includes comprehensive protections against short circuits, overloads, overvoltage, and over-temperature.

Furthermore, the internal PCB features conformal coating for enhanced environmental durability, a low-noise cooling fan operating at under 46 dB, and certification for operation at altitudes up to 5,000 meters.

Streamlining High-Power Applications

According to Mean Well, this power supply represents a highly compelling solution for space-constrained designs. It is fascinating to see how pushing transient capability to 200 percent opens up immediate performance upgrades for high-power platforms without necessitating larger enclosures.

Looking ahead, this hardware seems well suited for high-power industrial automation, semiconductor equipment, laser processing systems, commercial communications infrastructure, and multi-kilowatt medical devices looking to maximize density while maintaining peak reliability.

All images used courtesy of Mean Well.
