Inductors in Compact 1212 Case Optimized for DC-DC Converters up to 5MHz

Vishay Intertechnology, Inc. today introduced three new commercial IHLP® low profile, high current inductors in the 3.3mm by 3.3mm 1212 case size — the company's smallest to date. Designed to save space in computer and telecom applications, the Vishay Dale IHLP-1212AZ-01, IHLP-1212AB-01, and IHLP-1212BZ-01 offer extremely low profiles down to 1.0mm.

The devices released today are optimized for energy storage in dc-dc converters up to 5MHz and provide excellent attenuation of noise in high current filtering applications up to the SRF of the inductor. Applications for the inductors include notebooks, desktops, and servers; low profile, high current power supplies; and distributed power systems and FPGAs.

Packaged in a 100 % lead (Pb)-free shielded, composite construction that reduces buzz to ultra low levels, the IHLP-1212AZ-01, IHLP-1212AB-01, and IHLP-1212BZ-01 offer high resistance to thermal shock, moisture, and mechanical shock, and handle high transient current spikes without saturation. The devices are RoHS-compliant, halogen-free, and Vishay Green.

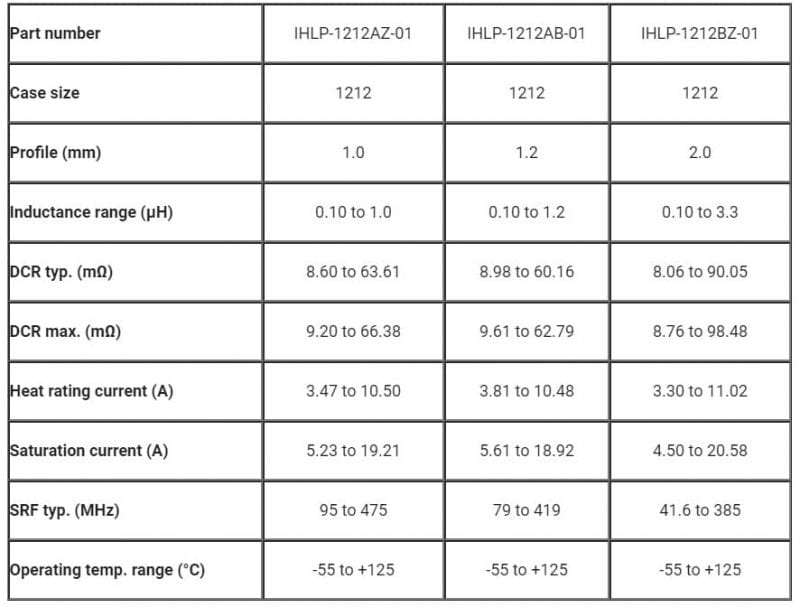

Device Specification Table (click on table to enlarge)

Samples and production quantities of the new inductors are available now, with lead times of eight weeks for large orders. Pricing for U.S. delivery only in 10,000-piece quantities begins at $0.16 per piece.
