2.5kW Ultra-Compact HB LLC Self-Leakage Resonant Transformer
April 24, 2019 by Paul Shepard
Magnetica has introduced the series 2358 half-bridge LLC topology resonant transformer, designed to achieve high performance in terms of weight / volume versus power transferred, secondary side rectification is performed by a synchronous rectification to achieve the highest efficiency.
Typical applications include mobility, drones, high-efficiency dc-dc converter, electrical skateboards, portable electrical equipment, and so on.
Electrical performance
- Topology half-bridge primary side, double resonant capacitor, synchronous rectification secondary side
- Output Power up to 2.5kW
- Output current up to 100Adc
- Efficiency up to 97%
- Output voltage range from 12- to 80-Vdc
- Operative temperature range -40 to +85 °C (derating can be applied depending on the output voltage)
- Thermal sensor NTC inserted into the primary windings connected on primary side pins
- High CFM ratings fan connected on primary side pins

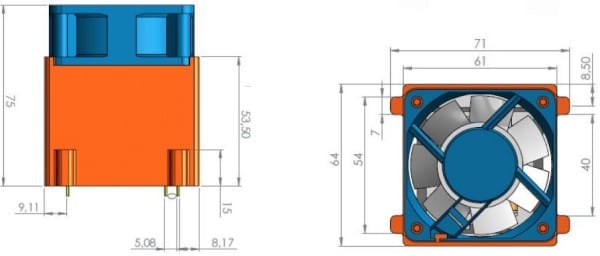

Physical dimensions
- Overall dimensions 61x64mm height 75mm
- Weight < 300g
- Mechanical fixing 4x self-tapping screw 3mm
- Recommended PCB hole for air flux 50x35mm
