P-DUKE Releases 180W AC/DC Power Supply in a 2x3 Inch Package

P-DUKE has announced their new TAD180 series, a 180W high-power density Iidustrial AC/DC power supply in a 2x3 inch package.

New Products Feb 14, 2022 by P-DUKE

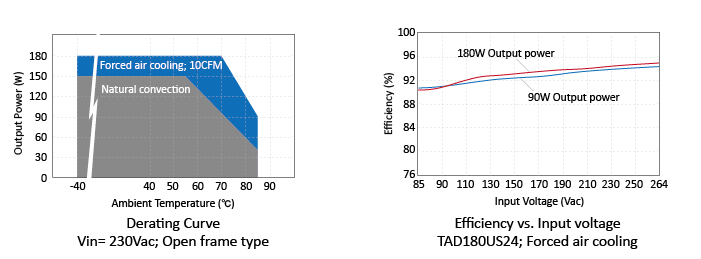

P-DUKE has announced the latest extension of its high-power density power supply to the existing range of 15W to 450W. The new TAD180 series delivers forced air cooling up to180W or 150W at natural convection cooling. Additionally, up to 220W peak output power for 5 seconds is available. This series is featured with 3000 Vac reinforced insulation and over-voltage category OVCIII (up to 2000m operating altitude) which make these power supplies suitable for many industrial applications, especially heavy-duty industry.

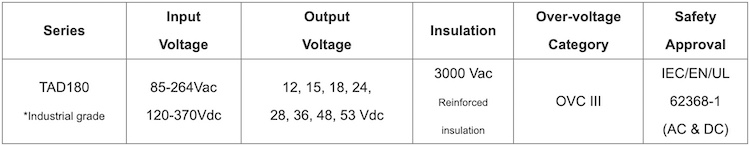

This series comes in compact 2 x 3-inch open-frame versions or optional encased versions and DIN-rail versions with a universal input range of 85 to 264 Vac or 120-370 Vdc. It provides 12, 15, 18, 24, 28, 36, 48, 53 Vdc single output voltage. The output voltage can be easily adjusted up to ±8% with the integrated potentiometer.

They have the following protection functions:

Over-voltage protection (latch mode)
Over-current protection (hiccup mode and auto-recovery)
Short-circuit protection (continuous and auto-recovery)
Over-temperature protection (sensed by an internal thermistor; hiccup mode and auto-recovery)

TAD180 series is equipped with long-life electrolytic capacitors, efficiencies up to 94%, power factor correction is 0.95, no-load power consumption of less than 150mW and IEC protection types of class I and class II. The power supplies can be operated at an altitude up to 5000m and with its superior performance at an operating temperature of -40°C to +85°C.

TAD180 power supplies have been certified to the following standards:

Safety approvals: IEC/EN/UL 62368-1
Conducted emissions: EN 55032 Class B
Radiated emissions: EN 55032 Class A

TAD180 AC/DC low-profile power supplies are ideal for space-constrained industrial, telecom and IT applications such like power distribution panels, motor related equipment, robotic arms and EV charging stations etc. Product warranty is 3 years.
