TRUMPower introduced its new TMP250 power adapter series targeting healthcare applications. With a minimum efficiency of 89%, the 250W power adapter meets the latest global energy efficiency standards for external supplies with its compliance to DoE Level VI and CoC EPS V5 Tier 2. It offers a very low no-load power consumption of 0.15W max.
Measuring 8.03in (L) x 3.45in (W) x 1.63in (H), the class I units come equipped with an IEC 320/C14 AC inlet and the class II units come with an IEC 320/C18 ac inlet. The units come in a large range of 12 standard single output voltages between 12Vdc to 54Vdc.
They operate with an input range of 80Vac to 264Vac. They have operating temperatures between -20°C to +60°C ambient, while derating linearly from 100% load at +40°C to 50% load at +60°C.
According to the company, the units are reliable with 100,000 hours minimum MTBF at 25°C ambient, calculated per MIL-HDBK-217F. They have a withstand voltage of 4,000Vac from input-output (2 x MOPP), making them suitable for patient care environments. Also included are over-voltage, over-current, and short circuit protections.
The TMP250 series is approved by UL/cUL and TUV to the latest medical standards, including IEC/EN/UL 60601-1 Edition 3.1, ANSI/AAMI ES 60601-1:2012, and CSA C22.2 No. 60601-1:2014. The power adapter complies with IEC/EN 60601-1-2 4th edition medical EMC and immunity standards, including EN 55011, VCCI and FCC class B (conducted and radiated emissions), EN 61000-3-2, EN 61000-3-3, EN 61000-4-2 (ESD at ±15kV air and ±8kV contact), EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11.

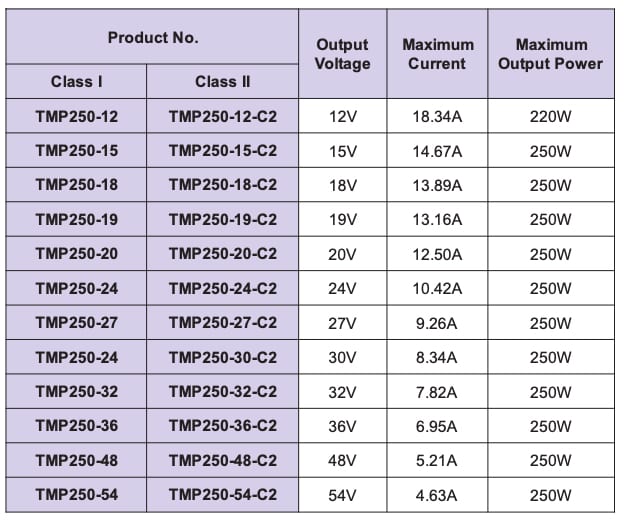

(Click on chart to enlarge)
Key Features
- 80Vac to 264Vac Input Range
- Single 12Vdc to 54Vdc Output
- Class I & Class II, 2 MOPP
- 0.98 Active Power Factor
- 89% Minimum Efficiency
- 0.15W Max No-Load Power Consumption
- Compliant with DoE Level VI and CoC EPS V5 Tier 2
- 4,000Vac, input-output (2 x MOPP)
- 1,500Vac, input-ground (1 x MOPP)
- 500Vac, output-ground
- MTBF 100,000hrs Minimum at Full Load 25°C calculated per MIL-HDBK-217F
According to the company, TMP250 is competitively priced in OEM quantity.
