RECOM Announces new D/C Converters Providing 12W in a SIP-8 PackageFebruary 26, 2020 by RECOM
RECOM offers a full 12W output in the industry-standard SIP-8 package from their new RS12-Z series of DC/DC converters, the highest power available in this format.
Leveraging advanced planar technology, RECOM now offers a full 12W output in the industry-standard SIP-8 package from their new RS12-Z series of DC/DC converters up to 75 °C in free air, the highest power available in this format. With a footprint of just 2cm², the range features 4:1 inputs of 9 – 36V or 18 – 75V with surge ratings to 50V and 100V respectively and regulated single outputs of 3.3, 5, 12, 15 or 24V, all trimmable +/-10% and with remote on/off control.

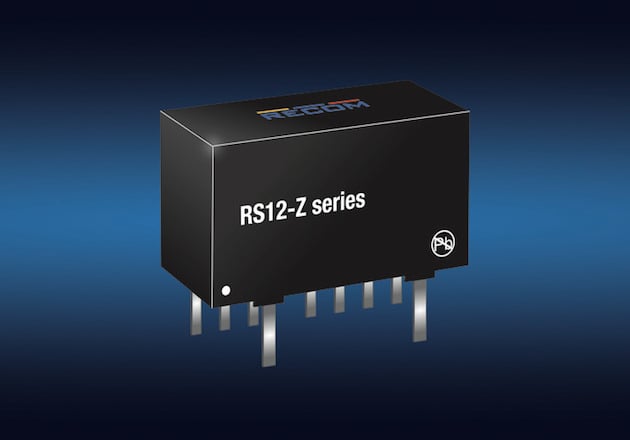

Image courtesy of RECOM
Short circuit and under-voltage protection are included along with 3kVDC/1s isolation and EN 62368-1 certification. EN 55032 class A or class B EMC levels are met with a simple, low-cost external filter. The series features a metal casing providing EMI shielding as well as an enhanced thermal performance with case tabs providing mechanical stability and additional heat sinking to the customer’s PCB.
“We have incorporated radical design changes in our new RS12-Z series, with a planar transformer construction and metal casing to push the limits of power density achievable in the SIP-8 package” commented Steve Roberts, Innovation Manager at RECOM. “The series is ideal for nominal 12, 24 or 48V systems where real estate is at a premium and full power is needed over a wide temperature range.”
The RECOM group is a power supply manufacturer from Austria with over 45 years of experience in developing and manufacturing the latest converter technology in a power range from 0.25W to 960W.
Worldwide customers have access to the largest selection of DC/DC converters and AC/DC power supplies on the market plus a broad range of switching regulators and LED drivers, all of which comply with international safety standards and carry the latest certifications.
